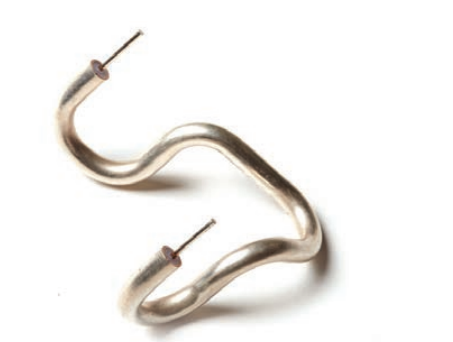

micro-coax特殊阻抗半刚电缆

	Micro-coax特殊阻抗半刚电缆，全球领先技术。被客户广泛应用于巴伦，功放匹配等应用。
产品特点：多样的外径和阻抗值可选

搜索型号：

CABLE P/N	Inner conductor	Outer conductor	Diameter(inches)	Insertion Loss(dB/ft@10GHz)	Impedance(ohms)	Max Frequency(GHz)
UT-085C-15	SPC	copper	0.087	1.2	15	47
UT-085C-15-TP	SPC	copper	0.087	1.2	15	47
UT-090C-25	SPC	copper	0.09	0.79	25	46
UT-090C-35	SPC	copper	0.09	0.66	35	49
UT-141C-15	SPC	copper	0.141	0.75	15	27
UT-141C-15-TP	SPC	copper	0.141	0.75	15	27
UT-141C-25	SPC	copper	0.141	0.52	25	29
UT-141C-35	SPC	copper	0.141	0.45	35	31
UT-141C-35-TP	SPC	copper	0.141	0.45	35	31
UT-034C-10	SPC	copper	0.034	0.5	10	117
UT-034C-10-TP	SPC	copper	0.034	0.5	10	117
UT-043C-10	SPC	copper	0.043	100.2	10	82
UT-043C-10-TP	SPC	copper	0.043	100.2	10	82
UT-070C-10	SPC	copper	0.07	65.7	10	58
UT-070C-10-TP	SPC	copper	0.07	65.7	10	58
UT-075C-10	SPC	copper	0.075	50.7	10	51
UT-075C-10-TP	SPC	copper	0.075	50.7	10	51
UT-044-12	SPCW	copper	0.044	42.2	12	100
UT-044-12-TP	SPCW	copper	0.044	42.2	12	100
UT-020C-13	SPCW	copper	0.023	0.5	13	178
UT-020C-13-TP	SPCW	copper	0.023	0.5	13	178
UT-034C-17	SPC	copper	0.034	15	17	129
UT-034C-17-TP	SPC	copper	0.034	15	17	129
UT-062-18	SPCW	copper	0.062	55.5	18	65
UT-062-18-TP	SPCW	copper	0.062	55.5	18	65
UT-034-25	SPCW	copper	0.034	29.8	25	148
UT-034-25-TP	SPCW	copper	0.034	29.8	25	148
UT-038C-25	SPC	copper	0.038	49.9	25	120
UT-038C-25-TP	SPC	copper	0.038	49.9	25	120
UT-047C-25	SPC	copper	0.047	42.6	25	120
UT-047C-25-TP	SPC	copper	0.047	42.6	25	120
UT-070C-25	SPC	copper	0.07	42.6	25	60
UT-070C-25-TP	SPC	copper	0.07	42.6	25	60
UT-090C-25	SPC	copper	0.09	0.5	25	46
UT-090C-25-TP	SPC	copper	0.09	0.5	25	46
UT-064SS-SS-30	304SS	304SS	0.064	10.1	30	85
UT-047C-35	SPC	copper	0.047	161.7	35	100
UT-047C-35-TP	SPC	copper	0.047	161.7	35	100
UT-090C-35	SPC	copper	0.09	26.2	35	50
UT-090C-35-TP	SPC	copper	0.09	26.2	35	50
UT-047-70	SPCW	copper	0.047	8.6	70	117
UT-047-70-TP	SPCW	copper	0.047	8.6	70	117
UT-141-70	SPCW	copper	0.141	24.6	70	43
UT-141-70-TP	SPCW	copper	0.141	24.6	70	43
UT-141C-70	SPC	copper	0.141	9.2	70	38
UT-141C-70-TP	SPC	copper	0.141	9.2	70	38
UT-085-75	SPCW	copper	0.085	8.2	75	67
UT-085-75-TP	SPCW	copper	0.085	8.2	75	67
UT-141-75	SPCW	copper	0.141	14.5	75	38
UT-141-75-TP	SPCW	copper	0.141	14.5	75	38
UT-141C-75	SPC	copper	0.141	0.5	75	38
UT-141C-75-TP	SPC	copper	0.141	0.5	75	38
UT-250-75	SPCW	copper	0.047	8.4	75	21
UT-250-75-TP	SPCW	copper	0.047	8.4	75	21
UT-085-93	SPCW	copper	0.141	4.8	93	65
UT-085-93-TP	SPCW	copper	0.141	4.8	93	65
UT-130-93	SPCW	copper	0.141	15.6	93	46
UT-130-93-TP	SPCW	copper	0.141	15.6	93	46
UT-034-95	SPCW	copper	0.085	11.2	95	177
UT-034-95-TP	SPCW	copper	0.085	11.2	95	177
UT-141-100	SPCW	copper	0.141	42.5	100	41
UT-141-100-TP	SPCW	copper	0.141	42.5	100	41

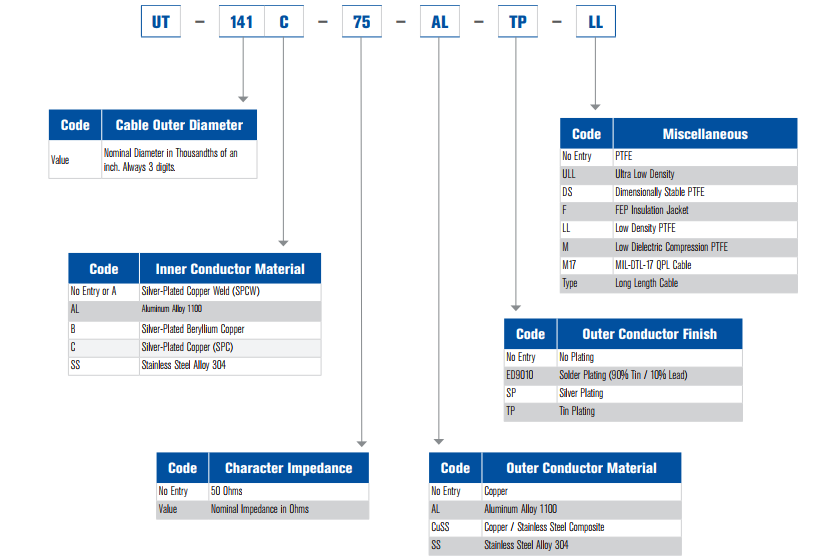

Micro-coax半刚电缆命名规则：
