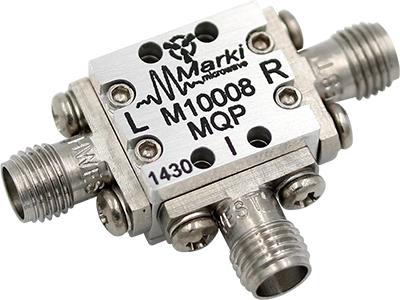

 | Marki 微波宽带双平衡混频器为采用环形二极管堆作为混频元件，以混合集成工艺制作的宽带双平衡混频器，具有宽带、低变频损耗的特点。为满足特殊应用需求，接头被设计成可拆卸的。 品牌： Marki |
产品特点： RF/LO频率覆盖1.5-67GHz 低转换损耗和优异平坦度 高隔离 | 主要应用： 测试测量设备 变频系统 新项目不推荐 |
| 型号 | 射频/低电平[GHz] | 射频/高电平[GHz] | 最低频率 [GHz] | 最高频率 [GHz] | 转换损耗[dB] | L-R绝缘 [dB] | L-I绝缘[dB] | 模块 | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| M1-0008 | 0.01 | 8 | DC | 2 | 7.5 | 40 | 25 | Y |  |
| M1-0012 | 0.01 | 12 | DC | 2 | 7.5 | 35 | 25 | Y | |
| M1-0204 | 2 | 4 | DC | 2 | 5 | 38 | 20 | Y | |
| M1-0208 | 2 | 8 | DC | 2 | 6 | 38 | 20 | Y | |
| M1-0212 | 2 | 12 | DC | 2 | 6 | 35 | 20 | Y | |
| M1-0218 | 2 | 18 | DC | 2 | 7 | 35 | 25 | Y | |
| M1-0220 | 2 | 20 | DC | 2 | 7 | 35 | 25 | Y | |
| M1-0310 | 3 | 10 | DC | 3 | 6 | 40 | 40 | Y | |
| M1-0408 | 4 | 8 | DC | 4 | 5.5 | 35 | 25 | Y | |
| M1-0412 | 4 | 12 | DC | 4 | 5 | 40 | 30 | Y | |
| M1-0420 | 4 | 20 | DC | 4 | 6 | 35 | 30 | Y | |
| M1-0616 | 6 | 16 | DC | 4 | 5.5 | 35 | 30 | Y | |
| M1-0620 | 6 | 20 | DC | 6 | 5.5 | 40 | 20 | Y | |
| M1-0818 | 8 | 18 | DC | 4 | 6 | 35 | 30 | Y | |
| M1-1020 | 10 | 20 | DC | 4 | 6 | 35 | 30 | Y | |
| M1B-0618 | 6 | 18 | DC | 4 | 5.5 | 33 | 30 | Y | |
| M1R-0726 | 7 | 26.5 | DC | 8 | 6 | 38 | 25 | Y | |
| M2-0020 | 0.5 | 20 | 0.001 | 6 | 7.5 | 24 | 25 | Y | |
| M2-0026 | 0.01 | 26.5 | 0.001 | 6 | 8 | 30 | 30 | Y | |
| M2-0208 | 2 | 8 | 0.001 | 6 | 7 | 20 | 30 | Y | |
| M2-0218 | 2 | 18 | 0.001 | 6 | 7.5 | 25 | 27 | Y | |
| M2-0219 | 2 | 19 | 0.001 | 6 | 7 | 25 | 25 | Y | |
| M2-0220 | 2 | 20 | 0.001 | 6 | 7.5 | 27 | 27 | Y | |
| M2-0226 | 2 | 26.5 | 0.001 | 6 | 7.5 | 28 | 28 | Y | |
| M2-0240 | 2 | 40 | 0.001 | 6 | 9 | 30 | 30 | Y | |
| M2-0243LPV | 2 | 43 | 0.4 | 43 | 10 | 30 | 25 | Y | |
| M2-0250LNVT | 2 | 50 | 0.4 | 50 | 10 | 25 | 25 | Y | |
| M2-0440 | 4 | 40 | 0.5 | 20 | 10 | 25 | 25 | Y | |
| M2B-0218 | 3 | 18 | 1 | 12 | 7.5 | 30 | 23 | Y | |
| M2H-0220 | 2 | 20 | 1 | 10 | 7 | 27 | 27 | Y | |
| M2H-0226 | 2 | 26.5 | 1 | 10 | 7.5 | 28 | 27 | Y | |
| M4-0040 | 0.5 | 40 | DC | 0.4 | 8 | 28 | 30 | Y | |
| M4-0050 | 0.5 | 50 | DC | 0.3 | 9 | 27 | 27 | Y | |
| M4-0126 | 1 | 26.5 | DC | 0.7 | 8.5 | 30 | 30 | Y | |
| M4-0140 | 1 | 40 | DC | 0.7 | 8.5 | 30 | 27 | Y | |
| M4-0150 | 1 | 50 | DC | 0.4 | 9 | 27 | 27 | Y | |
| M8-0326 | 3 | 26.5 | DC | 2 | 5.5 | 35 | 25 | Y | |
| M8-0412 | 4 | 12 | DC | 2 | 5 | 40 | 25 | Y | |
| M8-0420 | 4 | 20 | DC | 2 | 6 | 40 | 30 | Y | |
| M9-0444 | 4 | 44 | DC | 3 | 7.5 | 25 | 25 | Y | |
| M9-0942 | 9 | 42 | 1 | 22 | 9 | 25 | 25 | Y | |
