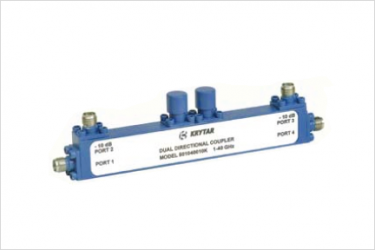

| KRYTAR的双定向耦合器采用独特的设计，在系统应用中用来信号测试，精确的监测，信号混合或扫频传输和反射测量等。 品牌：Krytar |
产品特点： 频率覆盖1-40GHz 10, 16, 30 dB Coupling 低插损和低驻波 | 典型应用： 电子战(EW) 商业无线 信号监视和测量 天线波束形成 EMC测试环境 |
| Model Number | Frequency Min. (GHz) | Frequency Max. (GHz) | Nominal Coupling (dB) | Frequency Sensitivity (dB) | Insertion Loss (dB Max) | Directivity (dB Min) | VSWR (Max) | Power Rating (Input) Watts | Standard Connectors (Female) | Datasheet |
|---|---|---|---|---|---|---|---|---|---|---|
| 501040010 | 1 | 40 | 10 ± 1.5 | ± 2.00 | 2.20 to 20 GHz 2.80 to 40 GHz | 15 | 1.50 to 20 GHz 1.80 to 40 GHz | 20 | 2.4 mm |  |
| 501040010K | 1 | 40 | 10 ± 1.5 | ± 2.00 | 2.20 to 20 GHz 2.80 to 40 GHz | 15 | 1.50 to 20 GHz 1.80 to 40 GHz | 20 | 2.92 mm | |
| 501040020 | 1 | 40 | 20 ± 1.0 | ± 1.5 | 2 | 15 | 1.8 | 20 | 2.4 mm | |
| 501040020K | 1 | 40 | 20 ± 1.0 | ± 1.5 | 2 | 15 | 1.8 | 20 | 2.92 mm | |
| 500520010 | 0.5 | 20 | 10 ± 1.0 | ± 1.85 | 3 | 12 | 1.4 | 20 | SMA | |
| 500520020 | 0.5 | 20 | 20 ± 1.2 | ± 0.85 | 2 | 12 | 1.4 | 20 | SMA | |
| 501820 | 1 | 20 | 10 ± 1.0 | ± 0.50 | 2.8 | 15 | 1.4 | 20 | SMA | |
| 502020030 | 2 | 20 | 30 ± 1.0 | ± 0.80 | 1.3 | 14 to 12.4 GHz 12 to 20 GHz | 1.4 | 20 | SMA | |
| 504020010 | 4 | 20 | 10 ± 1.25 | ± 0.80 | 2 | 15 to 12.4 GHz 12 to 20 GHz | 1.4 | 20 | SMA | |
| 504020020 | 4 | 20 | 20 ±1.0 | ±0.8 | 1.25 | 15 | 1.4 | 20 | SMA | |
| 504020030 | 4 | 20 | 30 ±1.0 | ±0.9 | 1 | 12 | 1.4 | 20 | SMA | |
| 501822 | 2 | 18 | 10 ± 1.5 | ± 0.50 | 2 | 15 | 1.35 | 20 | SMA | |
| 501818 | 2 | 18 | 16 ± 1.0 | ± 0.50 | 1.4 | 15 | 1.35 | 20 | SMA | |
| 500508010 | 0.5 | 8 | 10 ± 1.0 | ± 0.60 | 2.3 | 15 | 1.35 | 20 | SMA | |
| 502008020 | 2 | 8 | 20 ±0.5 dB | ±0.50 | 0.85 | 15 | 1.25 | 20 | SMA | |
| 501004020 | 1 | 4 | 20 ±1.0 | ±0.5 | 0.7 | 20 | 1.2 | 20 | SMA | |
