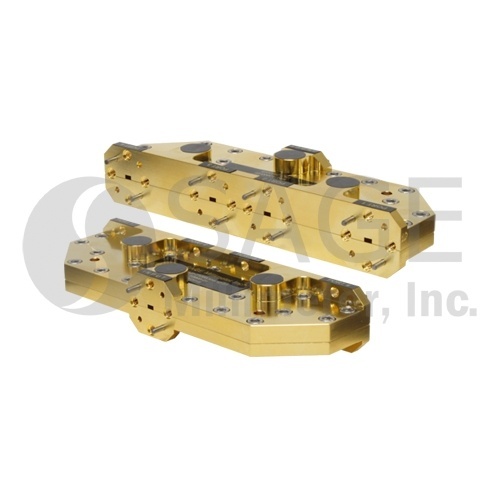

| SWP系列波导功分器广泛应用于实验室、测试仪器和通信系统中。下面的标准型号覆盖18到110 GHz，可定制频率高达170 GHz。具有低插损高隔离低驻波等特点。 品牌：Sage |
产品特点： 频率覆盖最高170GHz 一分二，一分四 一分八最多可定制一分三十二路 低插损 高隔离 | 主要应用： 测试仪器 实验室测试 系统集成 |
| 型号 | 最小频率 (GHz) | 最大频率 (GHz) | 插入损耗 (dB) | 端口隔离 (dB) | 端口驻波比 | 功分 (Way) | 配置 | 输入输出端口(WG) | 规格书 |
|---|---|---|---|---|---|---|---|---|---|
| SWP-75311402-10-S1 | 75 | 110 | 0.5 | 20 | 1.2:1 | 2 | Right Angle (90°) | WR-10 |  |
| SWP-75311404-10-E1 | 75 | 105 | 1 | 20 | 1.2:1 | 4 | In-line (180°) | WR-10 | |
| SWP-90310404-10-E1 | 90 | 105 | 1 | 20 | 1.2:1 | 4 | In-line (180°) | WR-10 | |
| SWP-92396304-10-S1 | 92 | 96 | 1 | 20 | 1.5:1 | 4 | Right Angle (90°) | WR-10 | |
| SWP-60390302-12-S1 | 60 | 90 | 0.4 | 20 | 1.2:1 | 2 | Right Angle (90°) | WR-12 | |
| SWP-62386304-12-E1 | 62 | 86 | 0.8 | 15 | 1.2:1 | 4 | In-line (180°) | WR-12 | |
| SWP-62386304-12-S1 | 62 | 86 | 0.8 | 20 | 1.5:1 | 4 | Right Angle (90°) | WR-12 | |
| SWP-71386304-12-E1 | 71 | 86 | 0.8 | 15 | 1.2:1 | 4 | In-line (180°) | WR-12 | |
| SWP-71386304-12-S2 | 71 | 86 | 1 | 20 | 1.5:1 | 4 | Right Angle (90°) | WR-12 | |
| SWP-50375302-15-S1 | 50 | 75 | 0.5 | 20 | 1.2:1 | 2 | Right Angle (90°) | WR-15 | |
| SWP-50375304-15-E1 | 50 | 75 | 1 | 20 | 20 dB | 4 | In-line (180°) | WR-15 | |
| SWP-50370302-15-S1 | 50 | 70 | 0.5 | 20 | 1.5:1 | 2 | Right Angle (90°) | WR-15 | |
| SWP-55367304-15-E1 | 55 | 67 | 1 | 20 | 1.2:1 | 4 | In-line (180°) | WR-15 | |
| SWP-50366308-15-E1 | 50 | 66 | 1.7 | 20 | 1.2:1 | 4 | In-line (180°) | WR-15 | |
| SWP-55365304-15-E2 | 55 | 65 | 1 | 25 | - | 4 | In-line (180°) | WR-15 | |
| SWP-59361304-15-E2 | 59 | 61 | 1 | 25 | - | 4 | In-line (180°) | WR-15 | |
| SWP-40360302-19-S1 | 40 | 60 | 0.3 | 20 | 17 dB | 2 | Right Angle (90°) | WR-19 | |
| SWP-40350302-22-S1 | 40 | 50 | 0.3 | 20 | 1.3:1 | 2 | Right Angle (90°) | WR-22 | |
| SWP-40350304-22-E1-599 | 40 | 50 | 0.5 | 20 | 1.2:1 | 4 | In-line (180°) | WR-22 | |
| SWP-27340302-28-S1 | 27 | 40 | 0.4 | 20 | 1.2:1 | 2 | Right Angle (90°) | WR-28 | |
| SWP-27335316-28-C1 | 28.5 | 35 | 1.2 | 20 | 1.2:1 | 16 | In-line (180°) | WR-28 | |
| SWP-24344302-28-S1 | 24 | 44 | 0.4 | 12 | 1.67:1 | 2 | Right Angle (90°) | WR-28 | |
| SWP-27338302-28-S1 | 26.5 | 38 | 0.4 | 20 | 1.22：1 | 2 | Right Angle (90°) | WR-28 | |
| SWP-27340302-28-E1-3 | 26.5 | 40 | 0.3 | 20 | 1.22：1 | 2 | In-line (180°) | WR-28 | |
| SWP-27340304-28-E1-3 | 26.5 | 40 | 0.5 | 20 | 1.43：1 | 4 | In-line (180°) | WR-28 | |
| SWP-40360304-19-E1 | 40 | 60 | 1 | 20 | 1.29：1 | 4 | In-line (180°) | WR-19 | |
| SWP-50375304-15-E1-3 | 50 | 75 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-15 | |
| SWP-50375304-15-S1-3 | 50 | 75 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-15 | |
| SWP-60390304-12-E1-3 | 60 | 90 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-12 | |
| SWP-60390304-12-S1-3 | 60 | 90 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-12 | |
| SWP-75311402-10-S1-2 | 75 | 105 | 0.8 | 20 | 1.43：1 | 2 | Right Angle (90°) | WR-10 | |
| SWP-75311404-10-E1-3 | 75 | 110 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-10 | |
| SWP-75311404-10-S1-3 | 75 | 110 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-10 | |
| SWP-75311408-10-E2-H | 75 | 105 | 4 | 20 | 1.5:1 | 8 | In-line (180°) | WR-10 | |
| SWP-11417402-06-S1 | 110 | 170 | 1.5 | 20 | 1.43：1 | 2 | Right Angle (90°) | WR-06 | |
| SWP-14422402-05-S1 | 140 | 220 | 1.7 | 20 | 1.43：1 | 2 | Right Angle (90°) | WR-05 | |
| SWP-27340304-28-S1-3 | 26.5 | 40 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-28 | |
| SWP-33350302-22-E1-3 | 33 | 50 | 0.5 | 20 | 1.22：1 | 2 | In-line (180°) | WR-22 | |
| SWP-33350302-22-S1 | 33 | 50 | 0.3 | 20 | 1.22：1 | 2 | Right Angle (90°) | WR-22 | |
| SWP-33350304-22-E1-3 | 33 | 50 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-22 | |
| SWP-33350304-22-S1-3 | 33 | 50 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-22 | |
| SWP-40360302-19-E1-3 | 40 | 60 | 0.3 | 20 | 1.22：1 | 2 | In-line (180°) | WR-19 | |
| SWP-40360304-19-E1-3 | 40 | 60 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-19 | |
| SWP-40360304-19-S1-3 | 40 | 60 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-19 | |
| SWP-50375302-15-E1-3 | 50 | 75 | 0.5 | 20 | 1.22：1 | 2 | In-Line (180°) | WR-15 | |
| SWP-60390302-12-E1-2 | 60 | 90 | 0.5 | 20 | 1.22：1 | 2 | In-line (180°) | WR-12 | |
| SWP-75311402-10-E1-3 | 75 | 110 | 0.5 | 20 | 1.22：1 | 2 | In-line (180°) | WR-10 | |
| SWP-90314402-08-E1-3 | 90 | 140 | 0.5 | 20 | 1.22：1 | 2 | In-line (180°) | WR-08 | |
| SWP-90314402-08-S1 | 90 | 140 | 0.5 | 20 | 1.22：1 | 2 | Right Angle (90°) | WR-08 | |
| SWP-90314404-08-E1-3 | 90 | 140 | 1 | 20 | 1.22：1 | 4 | In-line (180°) | WR-08 | |
| SWP-90314404-08-S1-3 | 90 | 140 | 1 | 20 | 1.22：1 | 4 | Right Angle (90°) | WR-08 | |
| SWP-12419402-06-S1 | 115 | 190 | 2 | 20 | 20 | 2 | Right Angle (90°) | WR-06 | |
| SWP-18327304-42-E1 | 18 | 26.5 | 0.5 | 20 | 20 | 4 | In-line (180°) | WR-42 | |
| SWP-22433402-03-S1 | 220 | 330 | 2.3 | 20 | 15 | 2 | Right Angle (90°) | WR-03 | |
| SWP-27340308-28-E1 | 26.5 | 40 | 1.2 | 20 | - | 8 | In-line (180°) | WR-28 | |
| SWP-43347302-19-S1 | 43 | 47 | 0.3 | 20 | - | 2 | Right Angle (90°) | WR-19 | |
| SWP-60390308-12-E1 | 60 | 90 | 1.7 | 20 | - | 8 | In-line (180°) | WR-12 | |
| SWP-62386304-12-E1-WP | 62 | 86 | 0.8 | 15 | 21 | 4 | In-line (180°) | WR-12 | |
| SWP-71386302-12-S1-WP | 71 | 86 | 0.4 | 20 | - | 2 | Right Angle (90°) | WR-12 | |
| SWP-85311402-10-S1-WP | 85 | 110 | 0.8 | 15 | 10 | 2 | Right Angle (90°) | WR-10 | |
